3G/4G/5G Cellular

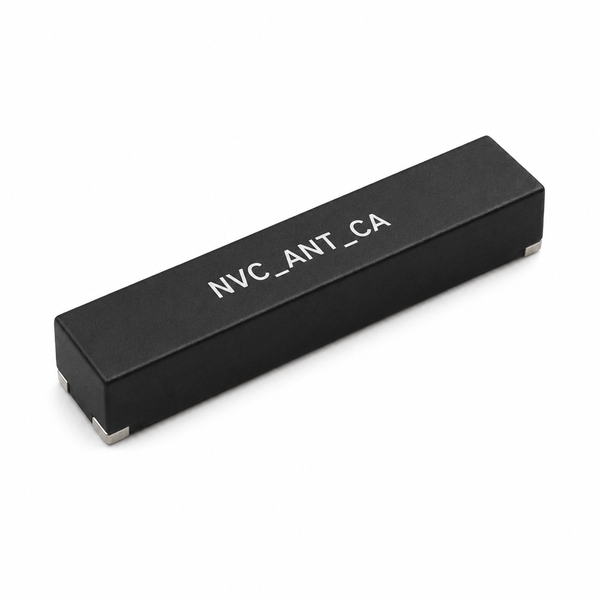

Cellular Antenna 40×5×5 mm

Cellular Wideband

Wideband cellular antenna covering 3G/4G/5G frequency bands. 40×5×5 mm, linear polarisation for mobile broadband integration.

View Specifications Request Datasheet

Every novocomms antenna is characterised in our in-house anechoic chamber. Radiation patterns, total efficiency, and return loss are fully measured across the specified operating bands. The performance you see in the datasheet is the performance you can rely on in your design.

Key Specifications

Dimensions	40×5×5 mm
Frequency	617-960 MHz, 1710-2690 MHz
Return Loss	≥4/5 dB
Gain	0.2/3.8 dBi
Ground Plane	60×130 mm
Polarisation	Linear
Impedance	50Ω

Typical values shown. Final integration performance depends on host device layout, enclosure, and installation environment.
