Antenna Solutions

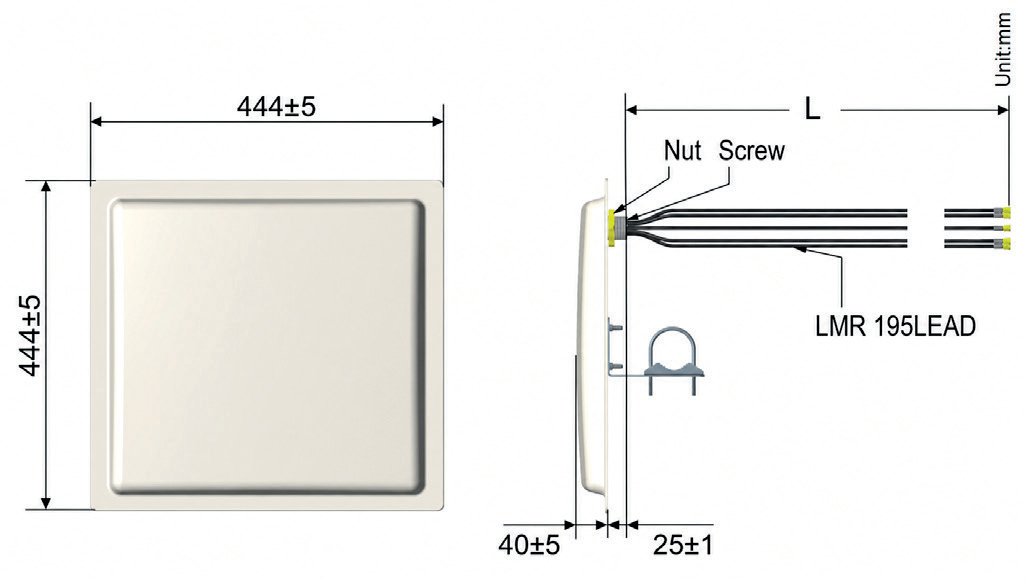

CAFBVBS5059

GNSS/5G NR/V2X Combo Antenna

V2X · GNSS · 5G

View Details →

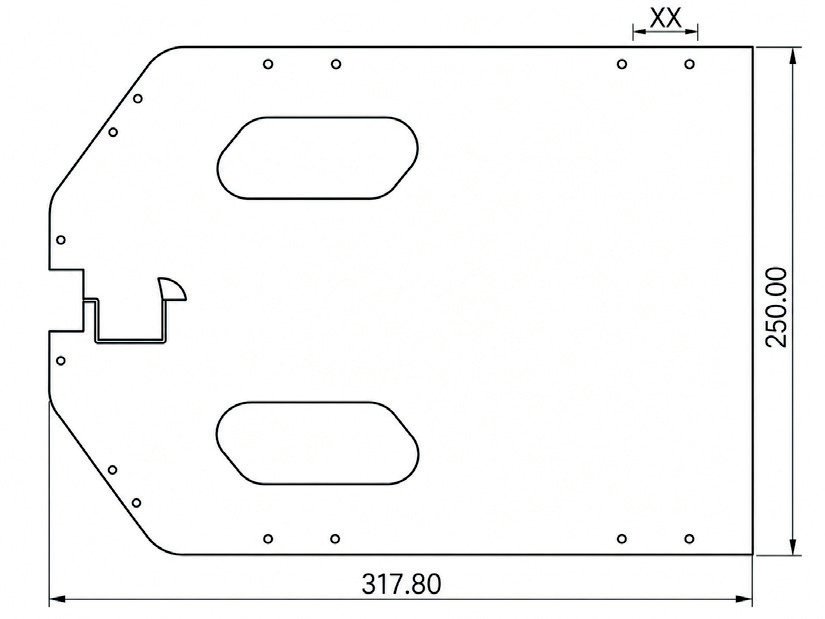

PCB00UAS5060

5G Ultra-Wideband End-Fire Antenna

5G · UWB

View Details →

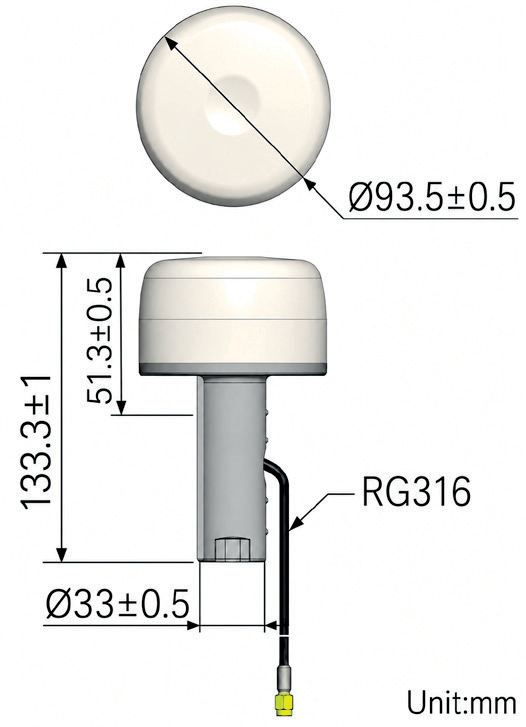

ESPG00SS5061

Iridium Cylindrical Antenna

Iridium · Satellite

View Details →

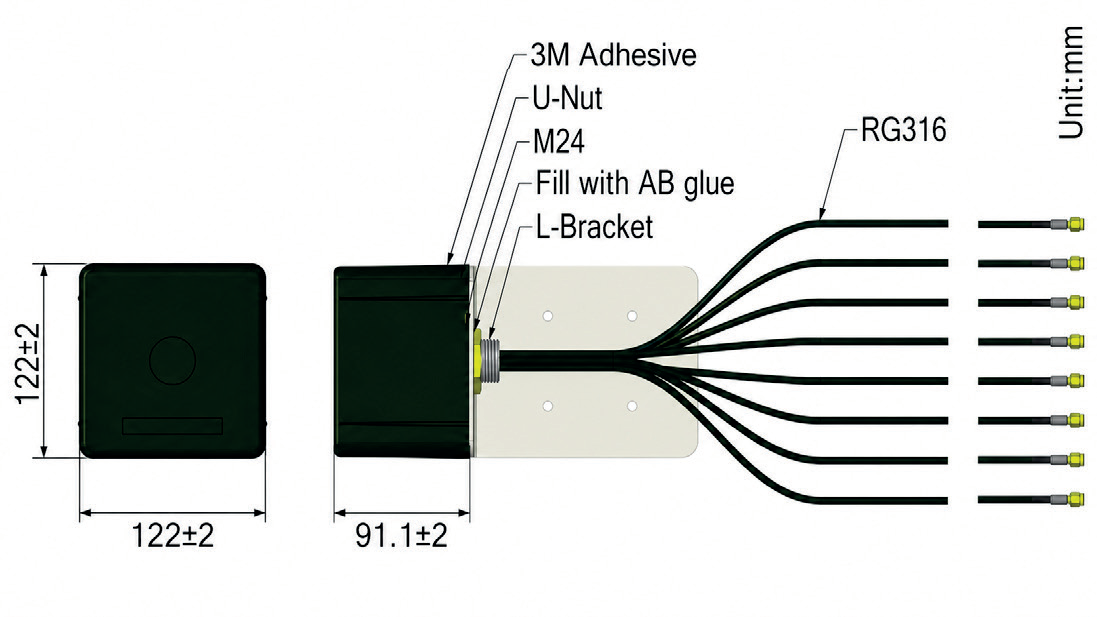

ESPG00SS5062

9-in-1 Integrated Combo Antenna

GNSS · Wi-Fi · 5G

View Details →

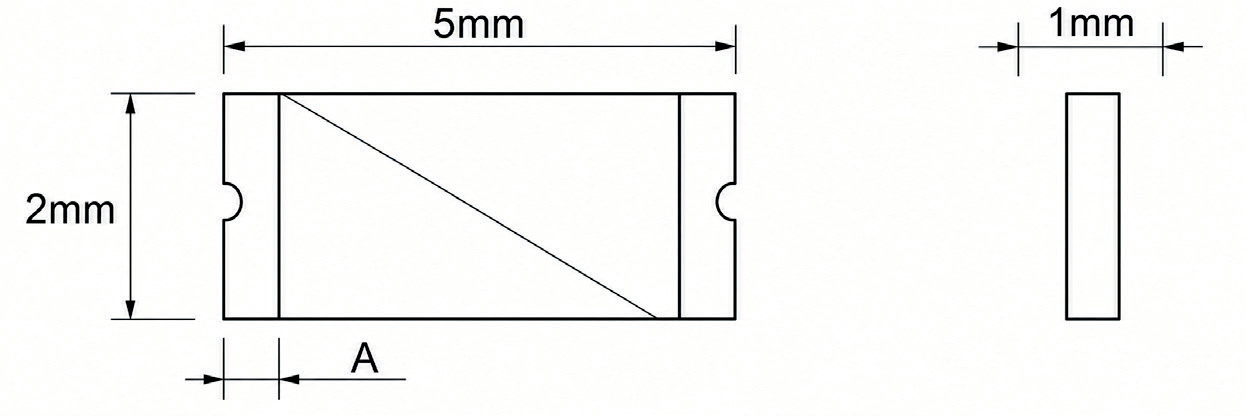

SCAW00SB5063

2.4 GHz Microwave Chip Antenna

2.4 GHz · Wi-Fi · BLE

View Details →

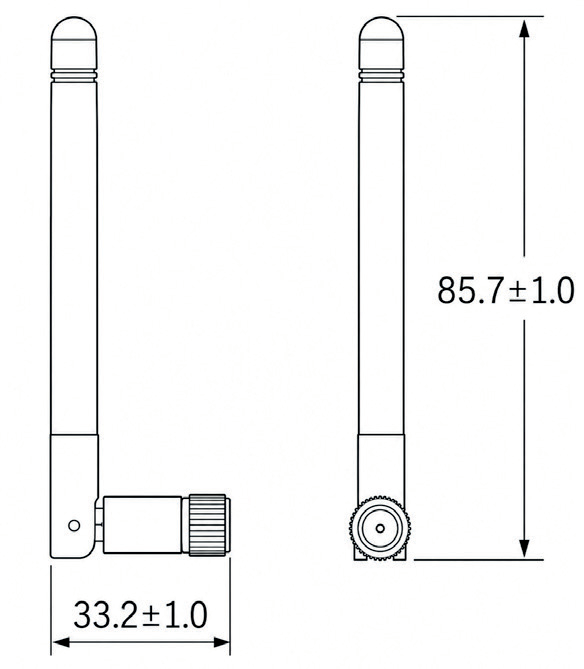

TMAW00BS5065

2.4 GHz Whip Antenna

2.4 GHz · Omnidirectional

View Details →

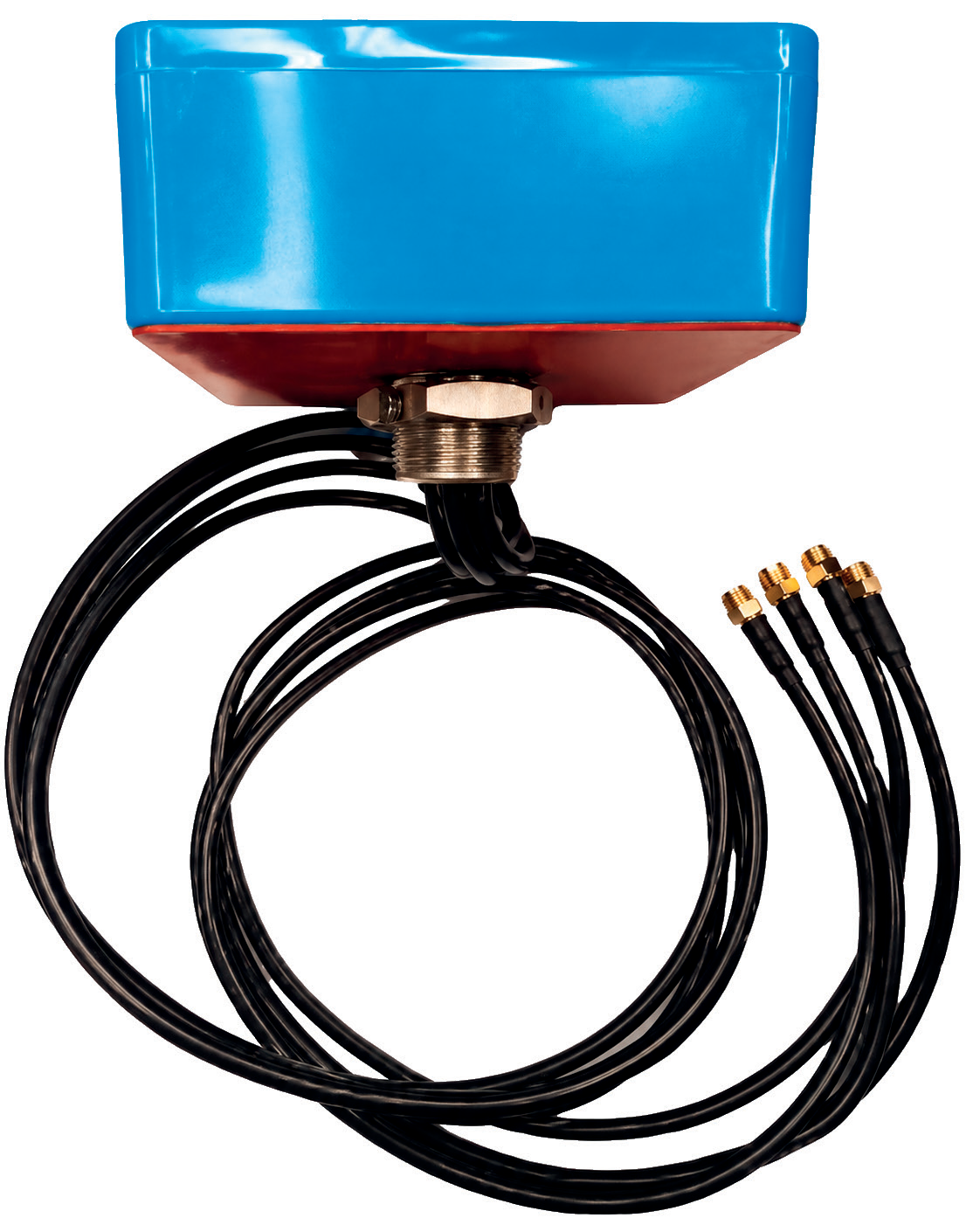

CACLFBS5066

4×4 5G MIMO & Wi-Fi 7 Antenna

5G · Wi-Fi 7 · MIMO

View Details →

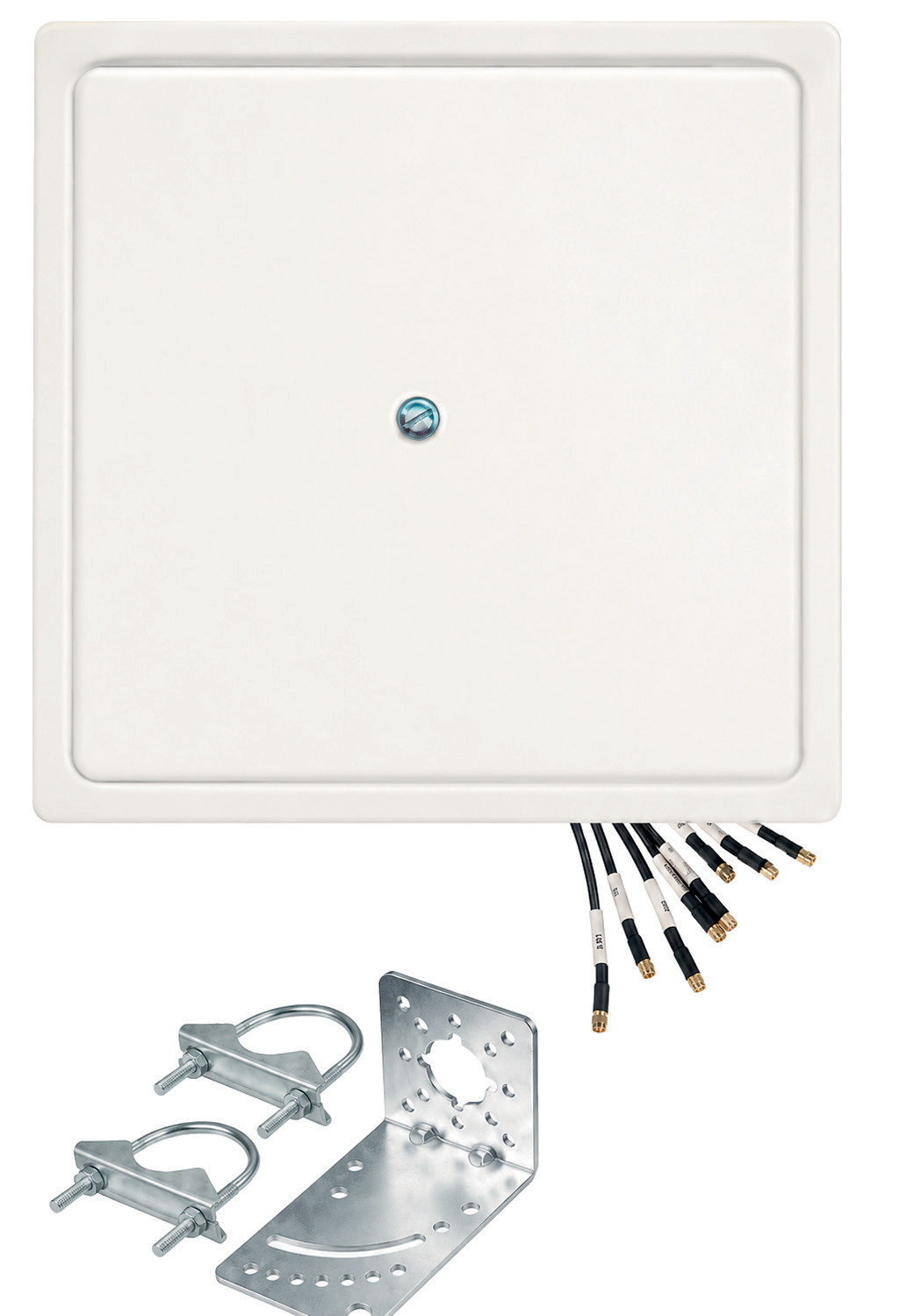

CAFWUBS5067

8×8 MIMO Panel Antenna

Wi-Fi · 8×8 MIMO

View Details →

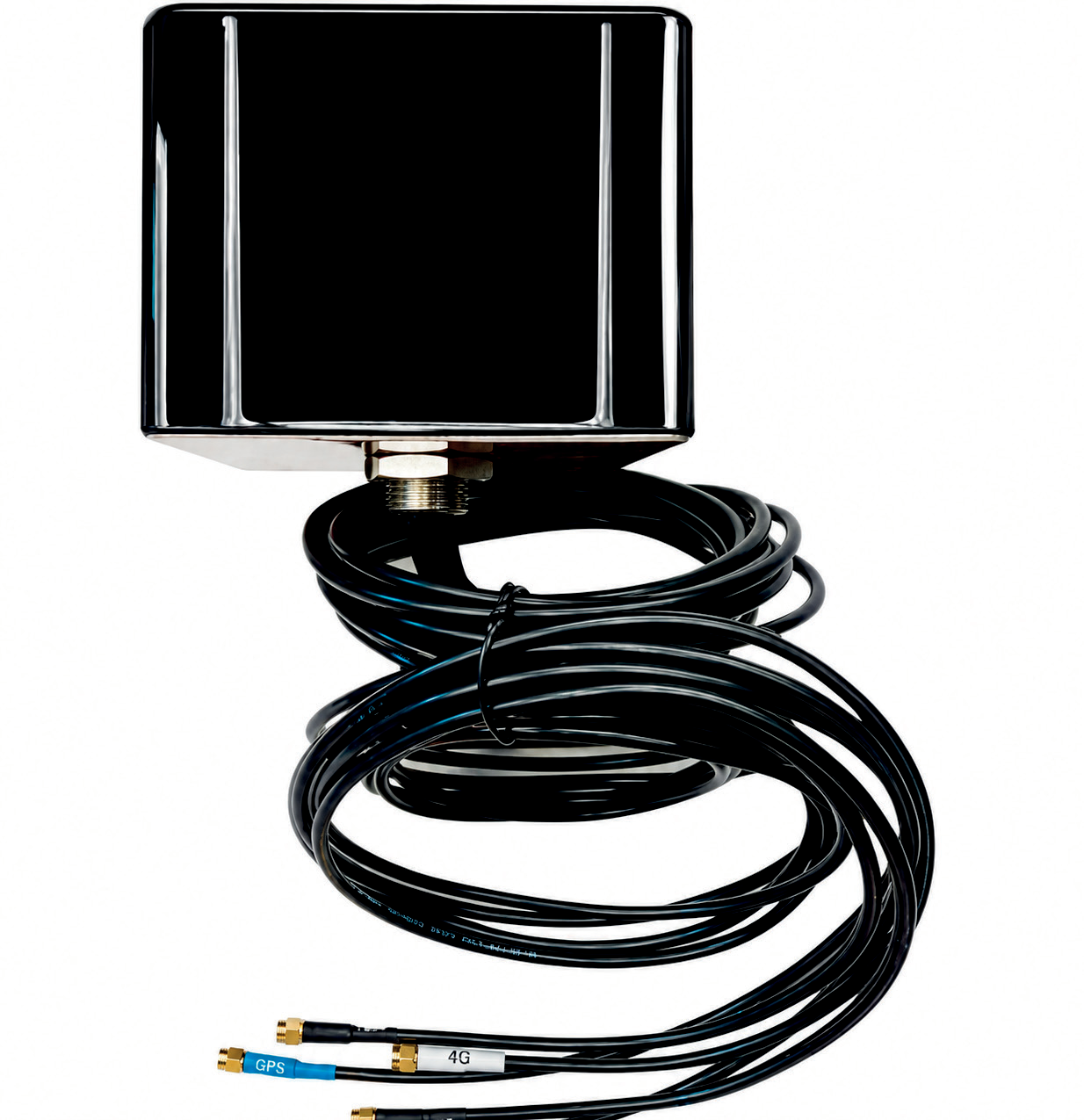

CAFWBBS5068

5-in-1 Combo Antenna

GNSS · Wi-Fi · Cellular

View Details →

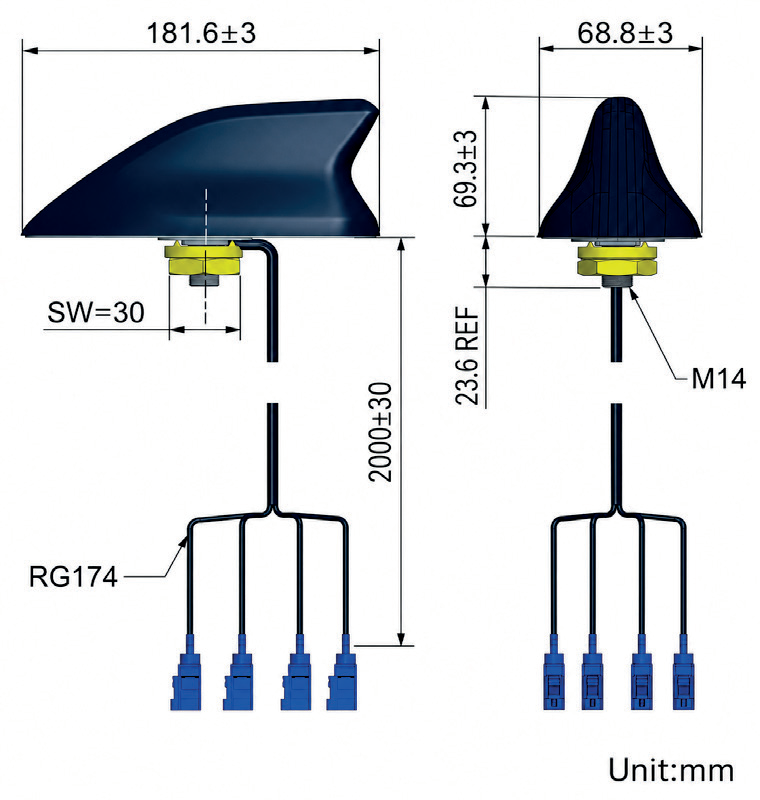

CAMB0BS5069

4-in-1 Shark Fin Antenna

V2X · GNSS · Cellular

View Details →

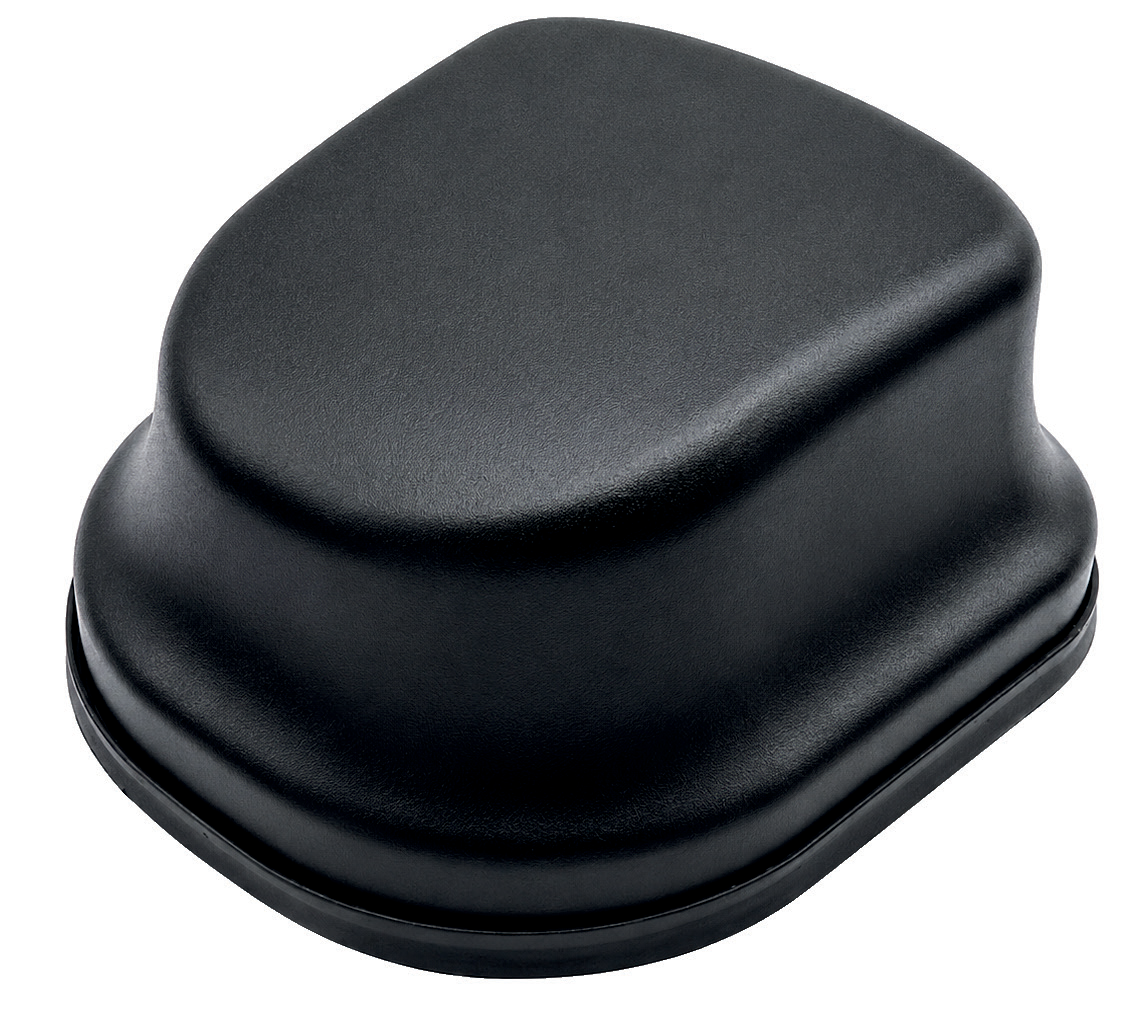

CAMB0BS5070

7-in-1 5G/Wi-Fi/GNSS Combo Antenna

5G · Wi-Fi · GNSS

View Details →

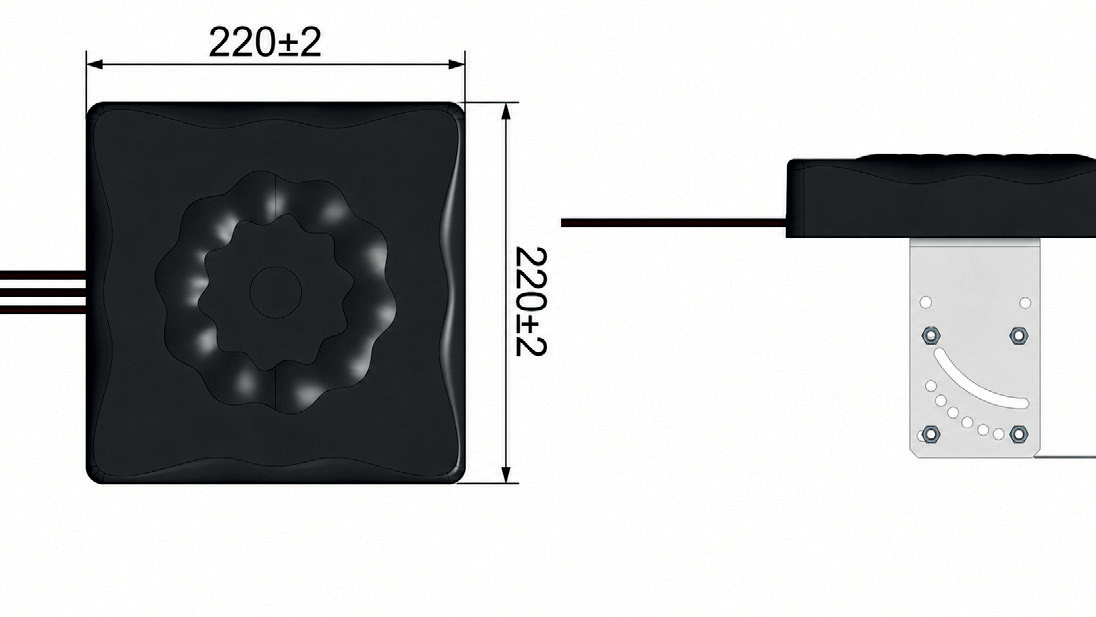

CAFB0BS5071

5G MIMO/Wi-Fi/GNSS Panel Antenna

5G · Wi-Fi · GNSS · MIMO

View Details →

Pin Type Single-Feed

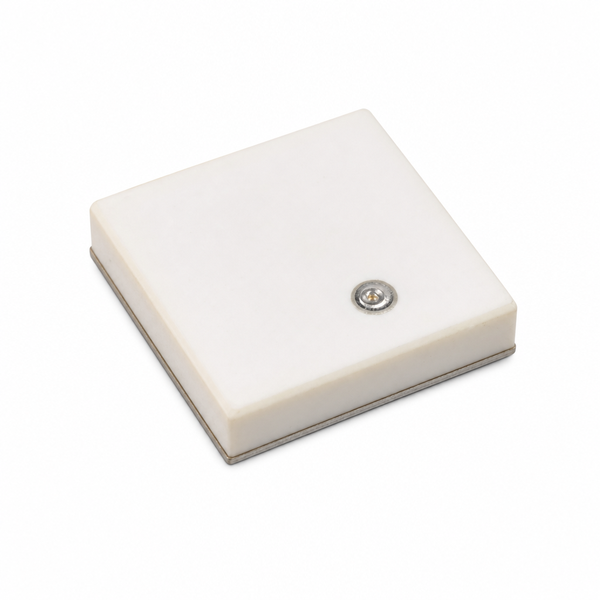

GNSS Patch Antenna 9×9×4 mm

Dimensions: 9×9×4 mm Frequency: 1575.42 MHz Gain: -6.0, -3.0 dBic

View Details →

Pin Type Single-Feed

GNSS Patch Antenna 10×10×4 mm

Dimensions: 10×10×4 mm Frequency: 1575.42 MHz Gain: -4.0, -1.0 dBic

View Details →

Pin Type Single-Feed

GNSS Patch Antenna 12×12×2 mm

Dimensions: 12×12×2 mm Frequency: 1575.42 MHz Gain: -1.0, 2.0 dBic

View Details →

Pin Type Single-Feed

GNSS Patch Antenna 12×12×4 mm

Dimensions: 12×12×4 mm Frequency: 1575.42 MHz Gain: -0.5, 2.5 dBic

View Details →

Pin Type Single-Feed

GNSS Patch Antenna 13×13×4 mm

Dimensions: 13×13×4 mm Frequency: 1575.42 MHz Gain: -0.5, 2.5 dBic

View Details →

Pin Type Single-Feed

GNSS Patch Antenna 15×15×2 mm

Dimensions: 15×15×2 mm Frequency: 1575.42 MHz Gain: -0.5, 2.0 dBic

View Details →

Pin Type Single-Feed

GNSS Patch Antenna 15×15×4 mm

Dimensions: 15×15×4 mm Frequency: 1575.42 MHz Gain: 0.0, 2.5 dBic

View Details →

Pin Type Single-Feed

GNSS Patch Antenna 16×16×4 mm

Dimensions: 16×16×4 mm Frequency: 1575.42 MHz Gain: -1.0, 2.0 dBi

View Details →

Pin Type Single-Feed

GNSS Patch Antenna 17×17×4 mm

Dimensions: 17×17×4 mm Frequency: 1575.42 MHz Gain: 0.5, 3.0, 4.0 dBic

View Details →

Pin Type Single-Feed

GNSS Patch Antenna 18×18×2 mm

Dimensions: 18×18×2 mm Frequency: 1575.42 MHz Gain: -0.5, 2.0, 3.0 dBic

View Details →

Pin Type Single-Feed

GNSS Patch Antenna 18×18×4 mm

Dimensions: 18×18×4 mm Frequency: 1575.42 MHz Gain: 0.5, 3.0, 4.0 dBic

View Details →

Pin Type Single-Feed

GNSS Patch Antenna 20×20×4 mm

Dimensions: 20×20×4 mm Frequency: 1575.42 MHz Gain: 1.0, 3.5, 4.0 dBic

View Details →

Pin Type Single-Feed

GNSS Patch Antenna 25×25×2 mm

Dimensions: 25×25×2 mm Frequency: 1575.42 MHz Gain: 0.0, 2.0, 3.5 dBic

View Details →

Pin Type Single-Feed

GNSS Patch Antenna 25×25×4-sf mm

Dimensions: 25×25×4-sf mm Frequency: 1575.42 MHz Gain: 2.0, 3.5, 5.0 dBic

View Details →

Pin Type Single-Feed

GNSS Patch Antenna 25×25×6 mm

Dimensions: 25×25×6 mm Frequency: 1575.42 MHz Gain: 2.5, 3.5, 5.0 dBic

View Details →

Pin Type Single-Feed

GNSS Patch Antenna 35×35×4 mm

Dimensions: 35×35×4 mm Frequency: 1575.42 MHz Gain: 3.5, 5.0 dBic

View Details →

Pin Type Single-Feed

GNSS Patch Antenna 40×18×8 mm

Dimensions: 40×18×8 mm Frequency: 1575.42 MHz Gain: 4.0 dBic

View Details →

SMD Type

GNSS SMD Patch Antenna 12×12×4 mm

Dimensions: 12×12×4 mm Frequency: 1575.42 MHz Gain: -0.5, 2.5 dBic

View Details →

SMD Type

GNSS SMD Patch Antenna 18×18×4 mm

Dimensions: 18×18×4 mm Frequency: 1575.42 MHz Gain: 0.5, 3.0, 4.0 dBic

View Details →

SMD Type

GNSS SMD Patch Antenna 25×25×4 mm

Dimensions: 25×25×4 mm Frequency: 1575.42 MHz Gain: 2.0, 3.5, 5.0 dBic

View Details →

Pin Type Dual-Feed

GNSS Dual-Feed Patch Antenna 25×25×6 mm

Dimensions: 25×25×6 mm Frequency: 1561/1575.42/1602 MHz Gain: 2.0/2.5/1.0 dBic

View Details →

Pin Type Dual-Feed

GNSS Dual-Feed Patch Antenna 30×30×6 mm

Dimensions: 30×30×6 mm Frequency: 1561/1575.42/1602 MHz Gain: 2.5/3.0/1.5 dBic

View Details →

Pin Type Dual-Feed

GNSS Dual-Feed Patch Antenna 33.5×33.5×6 mm

Dimensions: 33.5×33.5×6 mm Frequency: 1561/1575.42/1602 MHz Gain: 3.5/4.5/3.5 dBic

View Details →

Pin Type Dual-Feed

GNSS Dual-Feed Patch Antenna 40×40×6 mm

Dimensions: 40×40×6 mm Frequency: 1561/1575.42/1602 MHz Gain: 3.5/4.5/3.0 dBic

View Details →

Pin Type Quad-Feed

GNSS Quad-Feed Patch Antenna φ43×6 mm

Dimensions: φ43×6 mm Frequency: 1561/1575.42/1602 MHz Gain: 2.5/4.0/2.0 dBic

View Details →

Pin Type Quad-Feed

GNSS Quad-Feed Patch Antenna 47×47×6 mm

Dimensions: 47×47×6 mm Frequency: 1561/1575.42/1602 MHz Gain: 4.5/4.5/4.0 dBic

View Details →

Pin Type Quad-Feed

GNSS Quad-Feed Patch Antenna 50×50×6 mm

Dimensions: 50×50×6 mm Frequency: 1561/1575.42/1602 MHz Gain: 4.5/4.5/4.0 dBic

View Details →

Stacked Type

GNSS Stacked Patch Antenna 18×18×2 + 15×15×2 mm

Dimensions: 18×18×2 + 15×15×2 mm Frequency: 1176/1575.42 MHz Gain: -0.5/-0.5 dBic

View Details →

Stacked Type

GNSS Stacked Patch Antenna 25×25×4 + 18×18×4 mm

Dimensions: 25×25×4 + 18×18×4 mm Frequency: 1176/1575.42 MHz Gain: 2.0/2.0 dBic

View Details →

Stacked Type

GNSS Stacked Patch Antenna 25×25×6 + 18×18×4 mm

Dimensions: 25×25×6 + 18×18×4 mm Frequency: 1176/1575.42 MHz Gain: 2.5/2.0 dBic

View Details →

Stacked Type

GNSS Stacked Patch Antenna 35×35×6 + 25×25×4 mm

Dimensions: 35×35×6 + 25×25×4 mm Frequency: 1176/1575.42 MHz Gain: 3.0/4.5 dBic

View Details →

Stacked Type

GNSS Stacked Patch Antenna 35×35×6 + 28×28×4 mm

Dimensions: 35×35×6 + 28×28×4 mm Frequency: 1176/1575.42 MHz Gain: 2.5/4.0 dBic

View Details →

Stacked Type

GNSS Stacked Patch Antenna 35×35×8 + 28×28×6 mm

Dimensions: 35×35×8 + 28×28×6 mm Frequency: 1176/1207/1561/1575.42/1602 MHz Gain: 1.0/1.0/3.0/5.0/3.0 dBic

View Details →

Stacked Type

GNSS Stacked Patch Antenna 45×45×8 + 33.5×33.5×4 mm

Dimensions: 45×45×8 + 33.5×33.5×4 mm Frequency: 1176/1227/1561/1575.42/1602 MHz Gain: 3.5/0.0/3.5/5.0/3.5 dBic

View Details →

Stacked Type

GNSS Stacked Patch Antenna 48×48×5 + 36×36×3 mm

Dimensions: 48×48×5 + 36×36×3 mm Frequency: 1227/1575.42 MHz Gain: 3.5/4.5 dBic

View Details →

Stacked Type

GNSS Stacked Patch Antenna 50×50×8 + 40×40×4 mm

Dimensions: 50×50×8 + 40×40×4 mm Frequency: 1176/1227/1561/1575.42/1602 MHz Gain: 1.4/1.0/4.0/5.0/3.5 dBic

View Details →

Stacked Type

GNSS Stacked Patch Antenna 57×57×8 + 47×47×6 mm

Dimensions: 57×57×8 + 47×47×6 mm Frequency: 1176/1227/1268/1561/1575.42/1602 MHz Gain: 2.0/4.5/2.5/4.0/5.0/4.0 dBic

View Details →

BDS Patch

BDS Patch Antenna 12×12×6 + 18×18×6 + 18×18×6 mm

Dimensions: 12×12×6 + 18×18×6 + 18×18×6 mm Frequency: 1575/2492/1616 MHz Gain: -0.5/2.0/0.5 dBic

View Details →

BDS Patch

BDS Patch Antenna 18×18×6 mm

Dimensions: 18×18×6 (×3) mm Frequency: 1575/2492/1616 MHz Gain: ≥0.5/2.0/0.5 dBic

View Details →

BDS Patch

BDS Patch Antenna 20×20×6 + 25×25×6 + 25×25×6 mm

Dimensions: 20×20×6 + 25×25×6 + 25×25×6 mm Frequency: 1575/2492/1616 MHz Gain: 1.0/3.0/2.0 dBic

View Details →

BDS Patch

BDS Patch Antenna 15×15×6 mm

Dimensions: 15×15×6 mm Frequency: 1268 MHz Gain: 0.0 dBic

View Details →

BDS Patch

BDS Patch Antenna 18×18×7 mm

Dimensions: 18×18×7 mm Frequency: 1268 MHz Gain: 0.5 dBic

View Details →

BDS Patch

BDS Patch Antenna 20×20×6 mm

Dimensions: 20×20×6 mm Frequency: 1268 MHz Gain: 0.8 dBic

View Details →

BDS Patch

BDS Patch Antenna 25×25×6 mm

Dimensions: 25×25×6-bds mm Frequency: 1268 MHz Gain: 1.0 dBic

View Details →

BDS Patch

BDS Patch Antenna 25×25×6 mm

Dimensions: 25×25×6-df mm Frequency: 1268 MHz Gain: 0.5 dBic

View Details →

BDS Patch

BDS Patch Antenna 30×30×6 mm

Dimensions: 30×30×6 mm Frequency: 1268 MHz Gain: 1.0 dBic

View Details →

BDS Patch

BDS Patch Antenna 35×35×6 mm

Dimensions: 35×35×6 mm Frequency: 1268 MHz Gain: 1.5 dBic

View Details →

BDS Patch

BDS Patch Antenna 25×25×6 mm

Dimensions: 25×25×6-l1 mm Frequency: 1575.42 MHz Gain: 2.5/3.5/5.0 dBic

View Details →

BDS Patch

BDS Patch Antenna 25×25×4 mm

Dimensions: 25×25×4-s2 mm Frequency: 2492 MHz Gain: ≥5.0 dBic

View Details →

BDS Stacked

BDS Stacked Patch Antenna 25×25×6 + 18×18×4 mm

Dimensions: 25×25×6 + 18×18×4 mm Frequency: 1616/2492 MHz Gain: 3.5/3.5 dBic

View Details →

BDS Stacked

BDS Stacked Patch Antenna 36×36×2 + 25×25×2 mm

Dimensions: 36×36×2 + 25×25×2 mm Frequency: 1616/2492 MHz Gain: 2.0/2.0 dBic

View Details →

BDS Stacked

BDS Stacked Patch Antenna 45×45×6 + 25×25×4 mm

Dimensions: 45×45×6 + 25×25×4 mm Frequency: 1575/1616/2492 MHz Gain: 1.5/4.0/5.0 dBic

View Details →

BDS Stacked

BDS Stacked Patch Antenna 47×47×8 + 30×30×6 mm

Dimensions: 47×47×8 + 30×30×6 mm Frequency: 1575/1616/2492 MHz Gain: 2.5/4.5/5.5 dBic

View Details →

BDS Stacked

BDS Stacked Patch Antenna 56×56×4 + 40×40×2.5 mm

Dimensions: 56×56×4 + 40×40×2.5 mm Frequency: 1575/1616/2492 MHz Gain: 2.0/4.5/6.0 dBic

View Details →

BDS Stacked

BDS Stacked Patch Antenna 56×56×4 + 40×40×2.5 mm

Dimensions: 56×56×4 + 40×40×2.5v2 mm Frequency: 1575/1616/2492 MHz Gain: 2.5/4.5/6.0 dBic

View Details →

BDS Stacked

BDS Stacked Patch Antenna 43×43×6 + 33.5×33.5×4 + 25×25×2.5 mm

Dimensions: 43×43×6 + 33.5×33.5×4 + 25×25×2.5 mm Frequency: 1268/1616/2492 MHz Gain: 2.5/3.5/4.5 dBic

View Details →

BDS Stacked

BDS Stacked Patch Antenna 50×50×8 + 40×40×4 + 25×25×4 mm

Dimensions: 50×50×8 + 40×40×4 + 25×25×4 mm Frequency: 1268/1616/2492 MHz Gain: 3.0/4.5/5.0 dBic

View Details →

BDS Stacked

BDS Stacked Patch Antenna 57×57×4 + 47×47×4 + 25×25×4 mm

Dimensions: 57×57×4 + 47×47×4 + 25×25×4 mm Frequency: 1268/1616/2492 MHz Gain: 3.0/4.5/5.0 dBic

View Details →

BDS Stacked

BDS Stacked Patch Antenna 72×72×4 + 56×56×4 + 40×40×2.5 mm

Dimensions: 72×72×4 + 56×56×4 + 40×40×2.5 mm Frequency: 1575/1616/2492 MHz Gain: 3.0/4.5/6.0 dBic

View Details →

BDS Stacked

BDS Stacked Patch Antenna 85×85×25 mm

Dimensions: 85×85×25 mm Frequency: 1616/2492 MHz Gain: 4.0/5.0 dBic

View Details →

BDS Stacked

BDS Stacked Patch Antenna φ17×50 mm

Dimensions: φ17×50 mm Frequency: 1561/1575.42/1602 MHz Gain: 0.0/1.0/0.0 dBic

View Details →

RFID Reader

RFID Reader Antenna 18×18×4 mm

Dimensions: 18×18×4 mm Frequency: 920-925 MHz Gain: -6.5 dBic

View Details →

RFID Reader

RFID Reader Antenna 25×25×4 mm

Dimensions: 25×25×4 mm Frequency: 920-925 MHz Gain: -1.0 dBic

View Details →

RFID Reader

RFID Reader Antenna 25×25×4 mm

Dimensions: 25×25×4v2 mm Frequency: 920-925 MHz Gain: -2.0 dBic

View Details →

RFID Reader

RFID Reader Antenna 30×30×6 mm

Dimensions: 30×30×6 mm Frequency: 920-925 MHz Gain: 0.5 dBic

View Details →

RFID Reader

RFID Reader Antenna 40×40×6 mm

Dimensions: 40×40×6 mm Frequency: 902-928 MHz Gain: 1.0 dBic

View Details →

RFID Reader

RFID Reader Antenna 43×43×6 mm

Dimensions: 43×43×6 mm Frequency: 920-925 MHz Gain: 1.0 dBic

View Details →

RFID Reader

RFID Reader Antenna 50×50×9 mm

Dimensions: 50×50×9 mm Frequency: 865-868 MHz Gain: 1.5 dBic

View Details →

RFID Reader

RFID Reader Antenna 60×60×8 mm

Dimensions: 60×60×8 mm Frequency: 902-928 MHz Gain: 1.5 dBic

View Details →

RFID Reader

RFID Reader Antenna 62.5×62.5×6 mm

Dimensions: 62.5×62.5×6 mm Frequency: 902-928 MHz Gain: 1.5 dBic

View Details →

RFID Reader

RFID Reader Antenna 80×80×6 mm

Dimensions: 80×80×6 mm Frequency: 902-928 MHz Gain: 4.5 dBic

View Details →

RFID Reader

RFID Reader Antenna 120×120×5 mm

Dimensions: 120×120×5 mm Frequency: 902-928 MHz Gain: 5.5 dBic

View Details →

RFID Reader

RFID Reader Antenna 45×45×15 mm

Dimensions: 45×45×15 mm Frequency: 920-925 MHz Gain: 0.5 dBic

View Details →

RFID Tag

RFID On-Metal Tag Antenna φ6 mm

Dimensions: φ6 mm Read Range (on metal): 1.5 m

View Details →

RFID Tag

RFID On-Metal Tag Antenna 11.5×3×2.1 mm

Dimensions: 11.5×3×2.1 mm Read Range (on metal): 2 m

View Details →

RFID Tag

RFID On-Metal Tag Antenna 12×7×3 mm

Dimensions: 12×7×3 mm Read Range (on metal): 3 m

View Details →

RFID Tag

RFID On-Metal Tag Antenna 18×18×3 mm

Dimensions: 18×18×3 mm Read Range (on metal): 3.5 m

View Details →

RFID Tag

RFID On-Metal Tag Antenna 20×10×3 mm

Dimensions: 20×10×3 mm Read Range (on metal): 4.5 m

View Details →

RFID Tag

RFID On-Metal Tag Antenna 25×9×3 mm

Dimensions: 25×9×3 mm Read Range (on metal): 6.5 m

View Details →

RFID Tag

RFID On-Metal Tag Antenna 25×25×4 mm

Dimensions: 25×25×4 mm Read Range (on metal): 9 m

View Details →

RFID Tag

RFID On-Metal Tag Antenna 30×18×1 mm

Dimensions: 30×18×1 mm Read Range (on metal): 8 m

View Details →

RFID Tag

RFID On-Metal Tag Antenna 30×30×3 mm

Dimensions: 30×30×3 mm Read Range (on metal): 10 m

View Details →

RFID Tag

RFID On-Metal Tag Antenna 34×34×3 mm

Dimensions: 34×34×3 mm Read Range (on metal): 11 m

View Details →

RFID Tag

RFID On-Metal Tag Antenna 57×45×5 mm

Dimensions: 57×45×5 mm Read Range (on metal): 15 m

View Details →

ISM Band

ISM Band Antenna 6×3×3 mm

Dimensions: 6×3×3 mm Frequency: 2.4-2.483 GHz Gain: 1.5 dBi

View Details →

ISM Band

ISM Band Antenna 7×1.6×1.6 mm

Dimensions: 7×1.6×1.6 mm Frequency: 2.4-2.483 GHz Gain: 1.5 dBi

View Details →

ISM Band

ISM Band Antenna 12×12×4 mm

Dimensions: 12×12×4v1 mm Frequency: 2.4-2.483 GHz Gain: 2.5 dBic

View Details →

ISM Band

ISM Band Antenna 12×12×4 mm

Dimensions: 12×12×4v2 mm Frequency: 2.4-2.483 GHz Gain: 2.5 dBic

View Details →

ISM Band

ISM Band Antenna 25×25×4 mm

Dimensions: 25×25×4v1 mm Frequency: 2.4-2.483 GHz Gain: 4.5 dBic

View Details →

ISM Band

ISM Band Antenna 25×25×4 mm

Dimensions: 25×25×4v2 mm Frequency: 2.4-2.483 GHz Gain: 4.5 dBic

View Details →

ISM Band

ISM Band Antenna 30×30×6 mm

Dimensions: 30×30×6 mm Frequency: 2.4-2.483 GHz Gain: 5.5 dBic

View Details →

ISM Band

ISM Band Antenna φ19×32.5 mm

Dimensions: φ19×32.5 mm Frequency: 2.4-2.483 GHz Gain: 1.5 dBi

View Details →

ISM Band

ISM Band Antenna φ46×15 mm

Dimensions: φ46×15 mm Frequency: 2.4-2.483 GHz Gain: 4.5 dBic

View Details →

V2X

V2X Antenna 12×12×4 mm

Dimensions: 12×12×4 mm Frequency: 5850-5925 MHz Gain: 4.5 dBic

View Details →

V2X

V2X Antenna 25×25×4 mm

Dimensions: 25×25×4 mm Frequency: 5850-5925 MHz Gain: 7.0 dBic

View Details →

3G/4G/5G Cellular

Cellular Antenna 35×5×6 mm

Dimensions: 35×5×6 mm Frequency: 824-960 MHz, 1700-2170 MHz Gain: 1.3/2.3 dBi

View Details →

3G/4G/5G Cellular

Cellular Antenna 40×5×5 mm

Dimensions: 40×5×5 mm Frequency: 617-960 MHz, 1710-2690 MHz Gain: 0.2/3.8 dBi

View Details →

3G/4G/5G Cellular

Cellular Antenna 56×56×6 mm

Dimensions: 56×56×6 mm Frequency: 617-960/1710-2690/3300-5925 MHz Gain: 0.2/2.0/1.0 dBi

View Details →

SDARS

SDARS Satellite Antenna 20×20×4 mm

Dimensions: 20×20×4 mm Frequency: 2320-2345 MHz Gain: 3.0 dBic

View Details →

SDARS

SDARS Satellite Antenna 25×25×4 mm

Dimensions: 25×25×4 mm Frequency: 2320-2345 MHz Gain: 5.0 dBic

View Details →

SDARS

SDARS Satellite Antenna 25×25×6 mm

Dimensions: 25×25×6 mm Frequency: 2320-2345 MHz Gain: 5.5 dBic

View Details →

S-Band

S-Band Satellite Antenna 35×35×4 + 25×25×4 mm

Dimensions: 35×35×4 + 25×25×4 mm Frequency: 1980-2010/2170-2200 MHz Gain: 4.0 dBic

View Details →

Iridium

Iridium Antenna 25×25×4 mm

Dimensions: 25×25×4 mm Frequency: 1616-1627 MHz Gain: 4.5 dBic

View Details →

Iridium

Iridium Antenna 35×35×4 mm

Dimensions: 35×35×4 mm Frequency: 1616-1627 MHz Gain: 5.0 dBic

View Details →

Dielectric Resonator

Dielectric Resonator 5×3×3 mm

Dimensions: 5×3×3 mm Frequency: 1589 MHz Dielectric Constant: 95

View Details →
