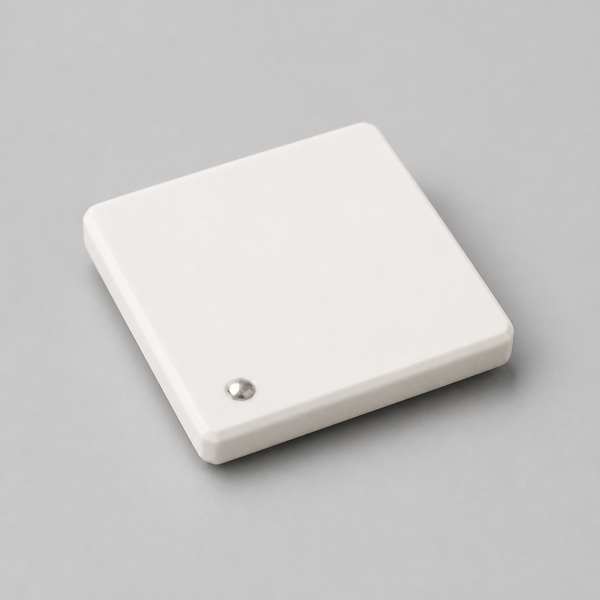

ISM Band Antenna 12×12×4 mm
ISM Band

ISM Band Antenna 12×12×4 mm

2.4 GHz ISM

2.4 GHz ISM band antenna for Wi-Fi, Bluetooth, and Zigbee applications. 12×12×4v1 mm with RHCP polarisation.

View Specifications Request Datasheet

Every novocomms antenna is characterised in our in-house anechoic chamber. Radiation patterns, total efficiency, and return loss are fully measured across the specified operating bands. The performance you see in the datasheet is the performance you can rely on in your design.

Key Specifications

Dimensions 12×12×4v1 mm
Frequency 2.4-2.483 GHz
Return Loss ≥10 dB
Gain 2.5 dBic
Ground Plane 50×50 mm
Polarisation RHCP
Impedance 50Ω

Typical values shown. Final integration performance depends on host device layout, enclosure, and installation environment.
