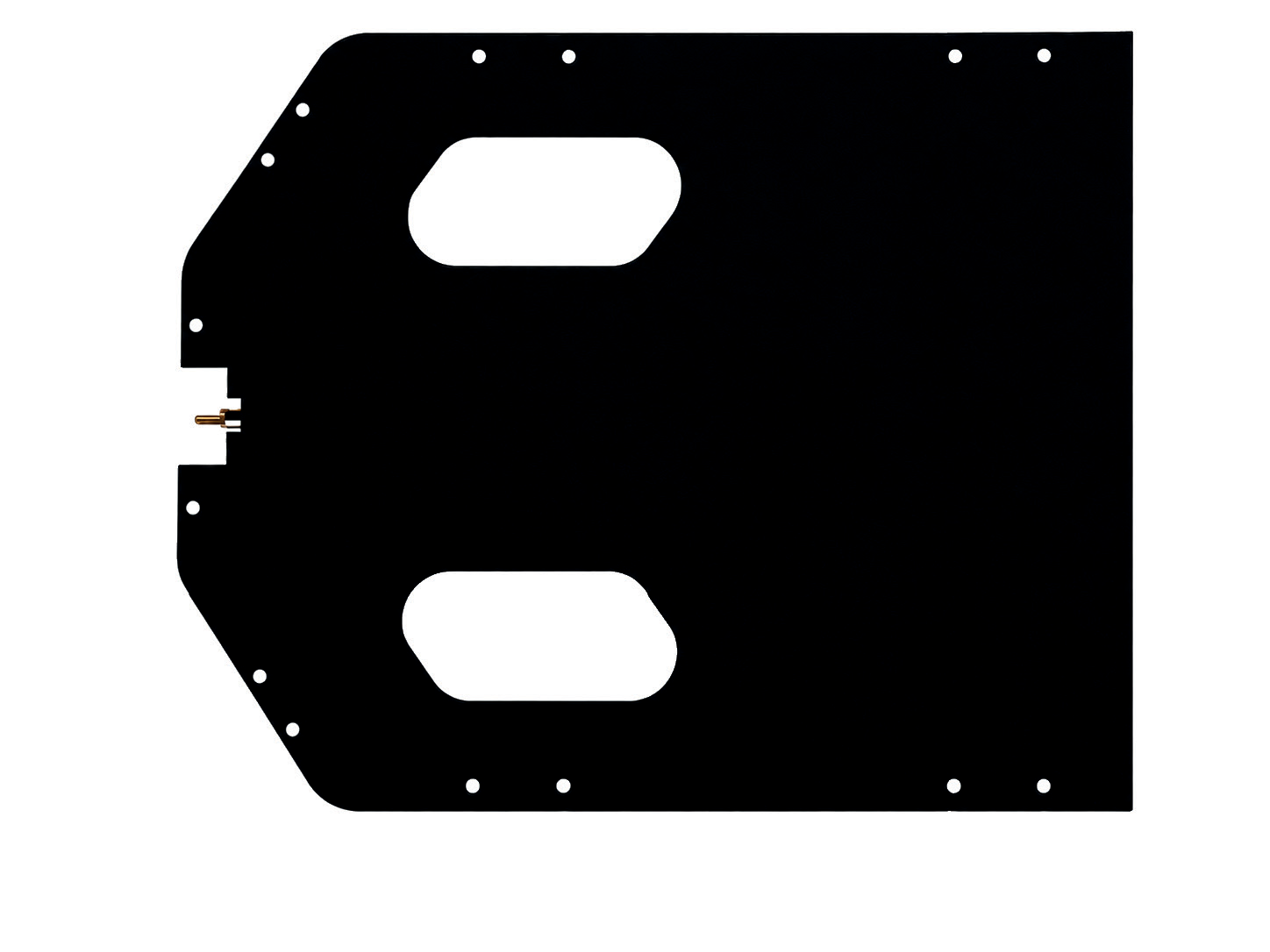

PCB00UAS5060
5G Ultra-Wideband Planar End-Fire Antenna
Wi-Fi
UWB
5G
A simple, robust terminal antenna for 5G, UWB, LoRa, CB, Wi-Fi, Bluetooth/BLE, Zigbee/Thread and 2.4 GHz ISM designs.
Why It Wins
- Integrated Multi-function antenna
- Flexible port and configuration selections
- High Gain (9dB)
- High level of integration
- Excellent connection performance
- High-efficiency omnidirectional radiation
Key Specifications
| Frequency | 433-10600 MHz |
| Gain | 9dB typ. |
| Polarisation | LP |
| Operating Temp | -40°C to +85°C |
| Protection | RoHS |
| Vibration | 10-55Hz, 1.5 amplitude, 2 hours |
| Dimensions | 250×317.8 mm |
| Connector | SMA female |
Typical values shown. Final integration performance depends on host device layout, enclosure, cable routing and installation environment.
