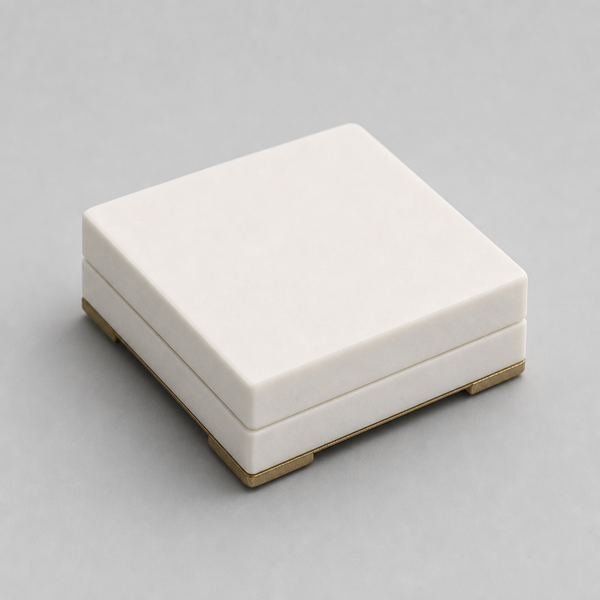

S-Band Satellite Antenna 35×35×4 + 25×25×4 mm
S-Band

S-Band Satellite Antenna 35×35×4 + 25×25×4 mm

S-Band Satellite

S-Band satellite communication antenna for mobile satellite services (MSS). Stacked patch design with LHCP for uplink/downlink coverage.

View Specifications Request Datasheet

Every novocomms antenna is characterised in our in-house anechoic chamber. Radiation patterns, total efficiency, and return loss are fully measured across the specified operating bands. The performance you see in the datasheet is the performance you can rely on in your design.

Key Specifications

Dimensions 35×35×4 + 25×25×4 mm
Type Stacked Patch
Frequency 1980-2010/2170-2200 MHz
Return Loss ≥10 dB
Gain 4.0 dBic
Axial Ratio 6.0 typ
Ground Plane 70×70 mm
Polarisation LHCP
Impedance 50Ω

Typical values shown. Final integration performance depends on host device layout, enclosure, and installation environment.
