An ultra-miniature surface-mount chip antenna measuring just 5 × 2 × 1 mm, delivering 2 dB gain at 2400–2500 MHz. Designed for high-volume embedded IoT, Bluetooth, Zigbee, and Wi-Fi applications where PCB real estate is at an absolute premium. Reflow-solder compatible for automated pick-and-place assembly.
Every novocomms antenna is characterised in our in-house anechoic chamber. Radiation patterns, total efficiency, and return loss are fully measured across the specified operating bands. The performance you see in the datasheet is the performance you can rely on in your design.
Download DatasheetOne of the smallest 2.4 GHz antennas available — fits into wearables, sensors, and miniaturised IoT modules effortlessly.
Standard SMD footprint supports automated pick-and-place and reflow soldering for high-volume manufacturing.
Optimised radiation pattern delivers 2 dB peak gain — impressive for its ultra-compact form factor.
Supports Wi-Fi 2.4 GHz, Bluetooth 5.x, Zigbee, Thread, and Matter — one antenna for multiple protocols.
Pre-tuned for 50 Ω — no external matching components needed, reducing BOM cost and design complexity.
Ceramic chip construction enables aggressive pricing at volume — ideal for mass-market consumer and industrial IoT.
| Frequency Range | 2400 – 2500 MHz |
| Peak Gain | 2 dBi |
| Polarisation | Linear |
| VSWR | ≤ 2.0:1 |
| Impedance | 50 Ω |
| Efficiency | ≥ 70% |
| Operating Temperature | -40 °C to +85 °C |
| Reflow Temperature | Max 260 °C (10 s) |
| Moisture Sensitivity | MSL 1 |
| RoHS | Compliant |
| Dimensions | 5 × 2 × 1 mm |
| Mounting | SMD (Surface Mount) |
| Material | Ceramic |
| Weight | < 0.1 g |
| Packaging | Tape & Reel |
Top View

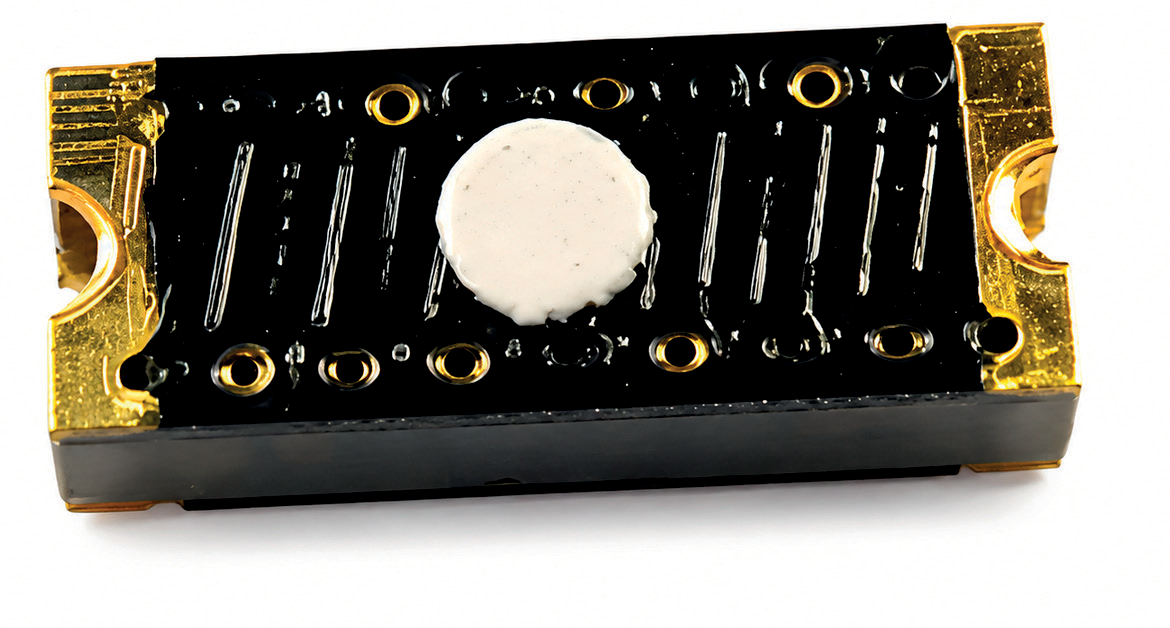

Mounted on PCB
