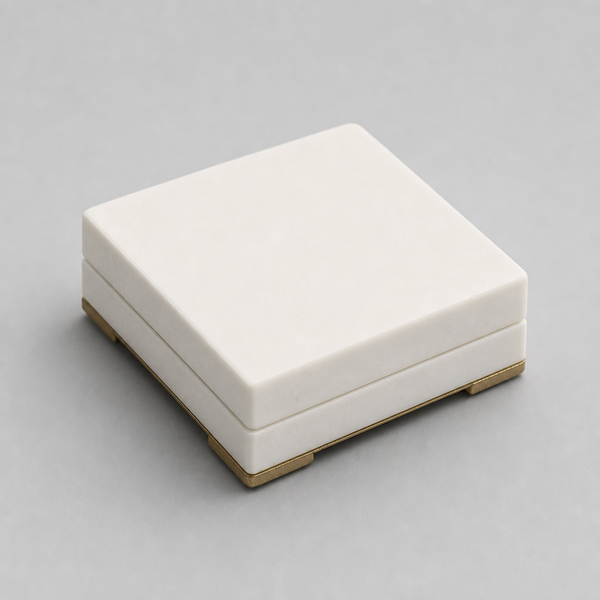

SDARS Satellite Antenna 25×25×4 mm
SDARS

SDARS Satellite Antenna 25×25×4 mm

SDARS Satellite

SDARS (Satellite Digital Audio Radio Service) antenna for SiriusXM and DAB reception. 25×25×4 mm with LHCP.

View Specifications Request Datasheet

Every novocomms antenna is characterised in our in-house anechoic chamber. Radiation patterns, total efficiency, and return loss are fully measured across the specified operating bands. The performance you see in the datasheet is the performance you can rely on in your design.

Key Specifications

Dimensions 25×25×4 mm
Frequency 2320-2345 MHz
Return Loss ≥10 dB
Gain 5.0 dBic
Axial Ratio 3.0 typ
Ground Plane 70×70 mm
Polarisation LHCP
Impedance 50Ω

Typical values shown. Final integration performance depends on host device layout, enclosure, and installation environment.
